4G/5G transparent glass antenna for outdoor network densification

3 mobile networks deployement challenges in dense urban areas

Capacity for Data Trafic

Mobile data traffic is increasing continuously and will boom significantly over the next 3-5 years with 5G, putting MNOs under CAPEX pressure.

Urban coverage

Higher frequency bands for 5G mean more challenges for coverage deployment, especially in dense urban areas where capacity will be needed and strict EMF limitations apply.

Deployment limitations

If small cells are described as a good solution for capacity improvement, many drawbacks limit their deployment :

  • Location for new antennas is difficult to find
  • Bringing fiber and electricity outdoor is costly to deploy
  • Urbanistic regulations may limit possibilities for small cells

We remove the barriers to 4G/5G network densification, with transparent glass antenna installed from indoor (behind glazing)

Antenna + micro RRU Fiber DU+CU and core network

  • Supports traffic increase with reduced CAPEX pressure

  • Compliant to EMF limitation

  • Antenna installed from indoor

What is it ?

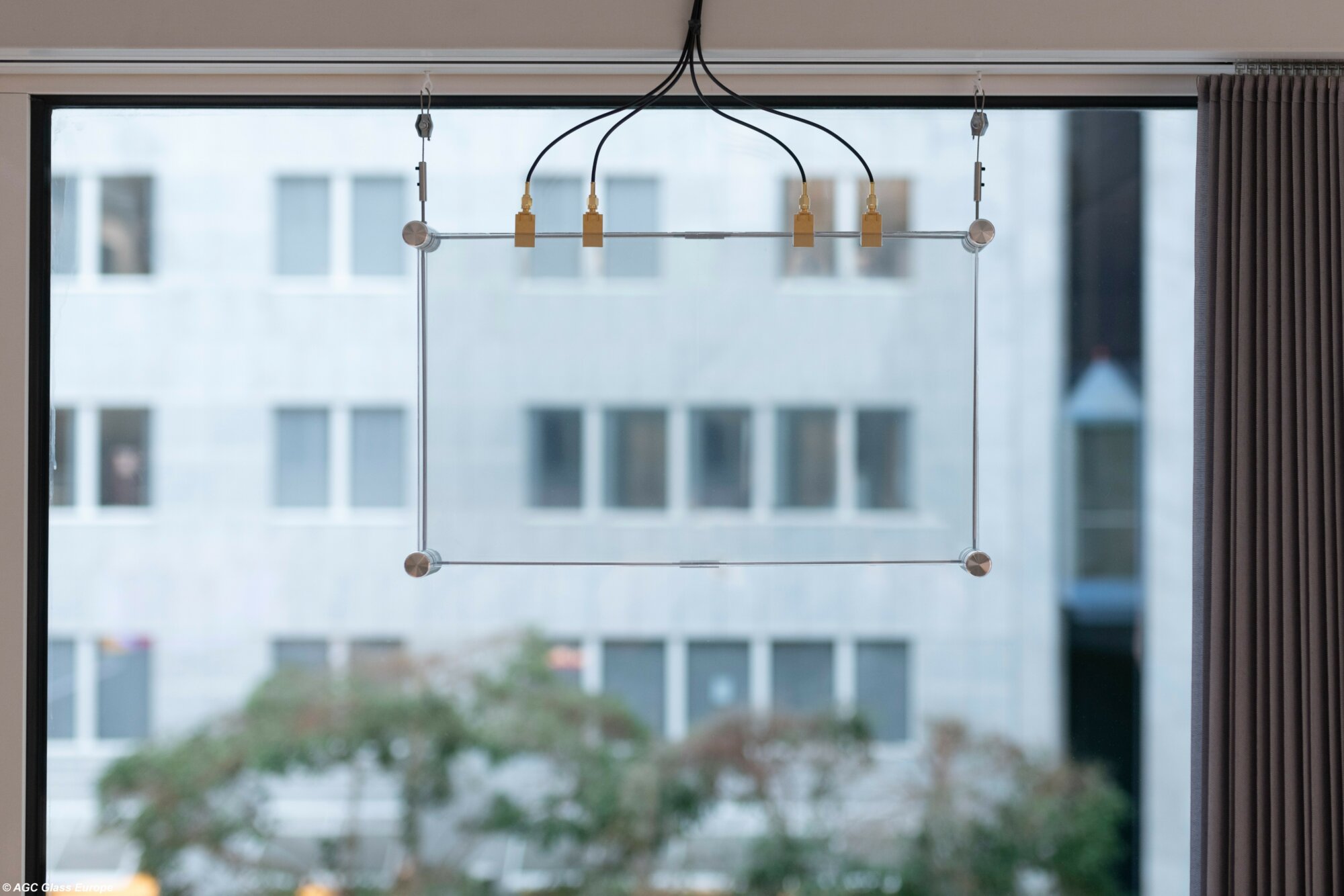

4G/5G transparent glass antenna for outdoor network densification installed from indoor (behind glazing)
« stealth » transparent antenna enables seamless indoor or outdoor placement in line with urban aesthetics and EMF constraints

WaveAttoch key benefits

High urbanistic compatibility

Seamless integration to environment. Can fit to any glass or wall.

Optimized radio performance

Antenna located at lower height enable better network densification in dense urban areas.

Reduced
EMF

Limited power enables reduced EMF levels.

You need more informations ? Don’t hesitate to contact us
Case study

DOCOMO

NTT docomo, the leading mobile operator in Japan, launched a service area expansion for 4G LTE mobile phones using glass antennas.

How it works ?

Indoor installation behind any window, eliminating the need for scaffolding or foundation work in the street
Electric cable Optical fiber cable RRU Coax cable
Easy access to fiber
and power

Fiber & power from buildings. No need for outdoor fiber installation.

Easy
rollout

Installation from indoor prevents need for scaffoldings or excessive permits.

Indoor
electronics

Reduced electronics and lighter enclosures (IP44).

You need more informations ? Don’t hesitate to contact us
WAVEATTOCH provides flexibility for area design and can be installed almost anywhere

Technical specs

Rolled-out 4G product
  • Single band
    3.5 GHz
    FREQUENCY BAND (GHZ)
  • 80
    BANDWIDTH (MHZ)
  • Fixed 20° or 30°
    DOWN TILT (DEG)
  • ~ 9
    GAIN (DB)
  • Single pol - V
    POLARIZATION
  • 4
    NUMBER OF PORTS
  • 1
    INPUT POWER (W/PORT)
5G product
  • Single band
    3.65 GHz or 4.55 GHz
    FREQUENCY BAND (GHZ)
  • 100
    BANDWIDTH (MHZ)
  • Fixed 25°
    DOWN TILT (DEG)
  • ~ 9
    GAIN (DB)
  • Single pol - V
    POLARIZATION
  • 4
    NUMBER OF PORTS
  • 1
    INPUT POWER (W/PORT)

Contact us for more informations

Any inquiry welcome. Drop us a line and we'll get back to you shortly.
